Sealed Lead Acid Batteries
12V 12AH Sealed Lead Acid Battery
LY11-048-25
- The 'Online' range of sealed lead acid batteries are maintenance free, valve regulated and leak proof ideally suited to all 'standby applications'
- There will be no loss in power output over the battery life.
- Low self-discharge of about 2-3% per month compared with 20-30% for more common battery systems.
- Quality construction with no compromise on materials to ensure a long service life.
- Low internal resistance means a high discharge rate.
- Wide operating temperature range operating between -15° C to +50 ° C when fully charged.
Specifications
| Nominal Voltage | 12V | |||
| Rated Cap | 12AH | |||
| Approx Weight | 3.20kg | |||
| Terminal | Standard | F1-TAB 187E | ||
| Optional | ||||
| Operation Temperature | ||||
| Charge | 0°C (32°F) - 40°C (104°F) | |||
| Discharge | -20°C (-4°F) - 50°C (122°F) | |||
| Storage | -20°C (-4°F) - 40°C (104°F) | |||
| Capacity 25° (77°F) | 20 hour rate (0.6A) | 12AH | ||
| 10 hour rate (1.08A) | 10.8AH | |||
| 5 hour rate (1.92A) | 9.6AH | |||
| 1 hour rate (7.2A) | 7.2AH | |||
| Capacity affected by temperature | 40°C (104°F) | 103% | ||
| 25°C (77°F) | 100% | |||
| 0°C (32°F) | 86% | |||
| -15°C (5°F) | 65% | |||
| Self-Discharge at 25ºC (77ºF) (Before recharge) | Capacity after 3 month | 91% | ||
| Capacity after 6 month | 82% | |||
| Capacity after 12 month | 64% | |||
| Constant voltage charge | Cycle | Initial Charging Current ≤3.6A 14.4V - 15V at 25°C (77°F) | ||
| Standby | 13.5V - 13.8V at 25°C (77°F) | |||
| Max discharge current for 5 secretary | 180A | |||

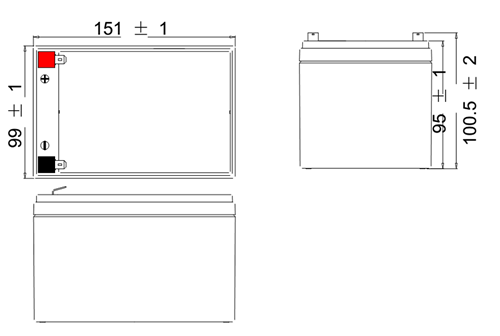

Dimensions(mm)
|
Specifications
| Time (mm) | 5 | 10 | 15 | 20 | 30 | 60 | 120 | 180 | 300 | 600 | |
| Final voltage | |||||||||||
| 1.80VPC | A | 48.19 | 28.48 | 23.29 | 19.38 | 13.14 | 6.99 | 4.47 | 2.43 | 1.81 | 0.96 |
| W | 560.00 | 299.00 | 244.50 | 203.50 | 138.00 | 85.00 | 47.00 | 33.00 | 21.00 | 11.50 | |
| 1.75VPC | A | 48.57 | 31.62 | 23.57 | 19.67 | 13.43 | 7.20 | 4.67 | 2.64 | 1.92 | 1.08 |
| W | 510.00 | 332.00 | 247.50 | 206.50 | 141.50 | 87.50 | 49.10 | 35.71 | 23.47 | 13.40 | |
| 1.70VPC | A | 48.76 | 31.81 | 23.71 | 19.81 | 13.62 | 7.45 | 4.78 | 2.81 | 2.03 | 1.16 |
| W | 512.00 | 334.00 | 249.00 | 208.00 | 143.00 | 89.00 | 50.40 | 36.79 | 24.12 | 13.50 | |
| 1.65VPC | A | 48.95 | 30.68 | 23.90 | 20.00 | 13.81 | 7.63 | 4.85 | 3.02 | 2.12 | 1.24 |
| W | 514.00 | 336.00 | 251.00 | 210.00 | 145.00 | 91.00 | 50.98 | 37.08 | 24.40 | 13.60 | |
| 1.60VPC | A | 49.04 | 32.00 | 24.00 | 20.09 | 13.90 | 7.85 | 4.93 | 3.18 | 2.20 | 1.31 |
| W | 515.00 | 336.00 | 252.00 | 211.00 | 146.00 | 92.00 | 51.34 | 37.30 | 24.60 | 13.80 |

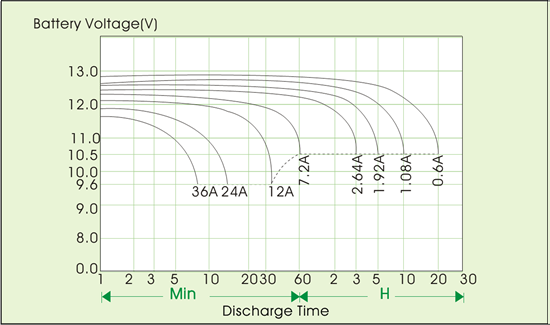

Discharge Characteristics
Note: Discharge shall be cut-off at 10.5V if discharge at <1CA and at 9.6V if at ≥1CA It is recommended to recharge battery by constant-voltage charge immediately after use
Applications
- UPS
- Emergency Lighting
- Toys & Consumer Electronics
- Fire Alarm & Security Systems
- Control
- Equipment
Downloads
 |
Data Sheet |
|
General Technical Handbook |
