PIR Detectors

SC360 - 360° Ceiling Mounted PIR

LY15-011-28

  • Dual Element Pyro Sensor
  • Digital Pulse Count
  • ASIC Controlled
  • Power Up Design
  • Walk Test LED
  • High RFI & EMI Immunity
  • Pulse Count 1, 2 Alternate Polarity

General Specifications
Dual element pyro sensor
High level RFI/EMI protection
Digital pulse count 1 or 2 jumper selectable
LED enabled input & via jumper
Operation Specifications
Alarm period >2 seconds
Detection speed 0.3 - 3ms

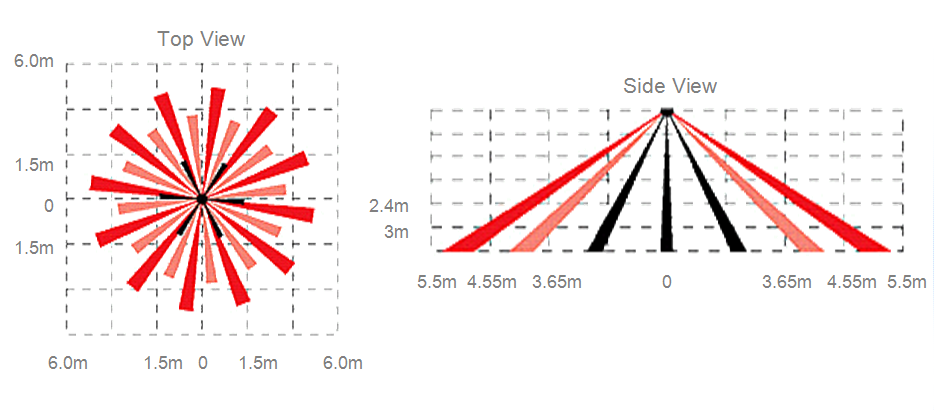

Range 360º, 11metre diameter
Mounting height Ceiling, max 3.6m
European Standards
Electro-magnetic Compatibility (EMC) 89/336/EEC (Amended by 92/31/EEC and 93/68EEC) RoHS
Electrical Specification
Operating voltage 9-16Vdc
Operating current 15mA maximum
Alarm contacts N/C solid state 60vdc 50mA
Tamper contacts 16V 50mA maximum
RFI immunity Exceeds CE requirements
Technical Specifications
Plastic housing material 3mm ABS/PC
Dimensions 100mm diameter
Weight 90g
