Micron Quad Internal PIR c/w Wall / Ceiling Bracket

LY69-000-66

  • High Sensitivity Quad Element Pyro Sensor
  • Digital Pulse Count
  • Microprocessor Based
  • Extended Temperature Performance
  • Opto Isolated Solid State Relay
  • Detection Angle 110 Degrees
  • 15m Volumetric Range
  • Sealed Optics
  • Tamper Proof Universal Wall
  • Ceiling Mounting Bracket
  • Grade II
  • Residential, Commercial, Industrial

General Specifications
Quad high sensitivity pyro sensor
10 bit analogue digital conversion ADC
Digital signal processing DSP
Digital amplifier
Opto isolated solid state relay
Digital pulse count 1, 2 alternative polarity, 3 jumper selectable
LED enabled input & via jumper
Operation Specifications
Alarm period >2 seconds
Detection speed 0.3 - 3ms

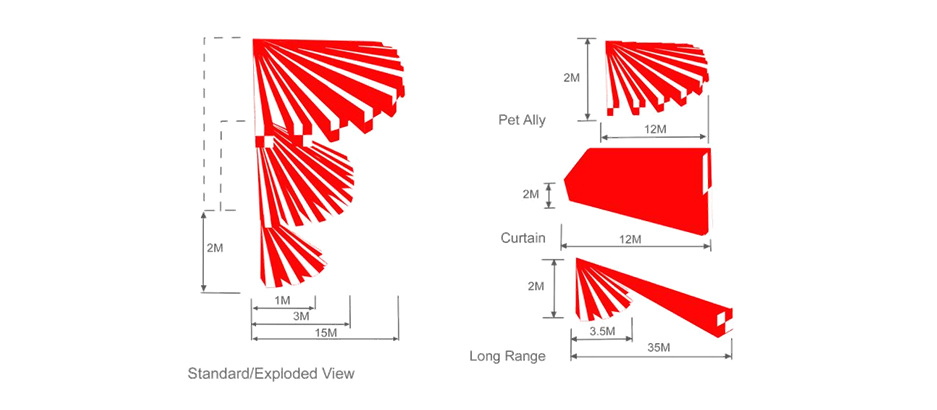

Range 15m 110º volumetric
Mounting height 2m
European Standards:
Electro-magnetic Compatibility (EMC) 89/336/EEC (Amended by 92/31/EEC and 93/68EEC) RoHS
Electrical Specifications
Operating voltage 9-16Vdc
Operating current 6mA
Alarm contacts N/C solid state 60vdc 50mA
Tamper contacts 16V 50mA maximum
RFI immunity Exceeds CE requirements
Technical Specification
Plastic housing material 3mm ABS/PC
Dimensions 72mm X 59mm X 44mm
Weight 52g
